JETWAY UTX-ARS1-H810 Micro-ATX (Intel H810, LGA1851) [2x 2.5GbE, 2x HDMI]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY UTX-ARS1-H810 Micro-ATX (Intel H810, LGA1851) [<b>2x 2.5GbE</b>, 2x HDMI]
  • Intel Arrow Lake-S !
  • Intel H810 !
  • 2x 2.5GbE !
  • PCIe Gen5 x16 !

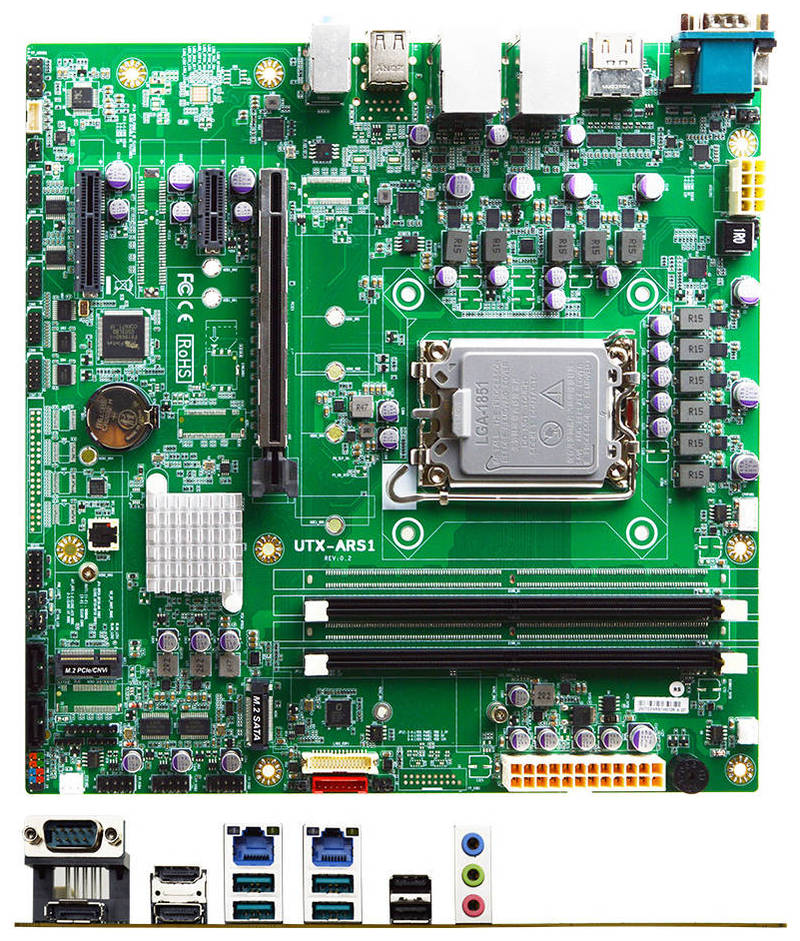

The JETWAY UTX-ARS1-H810 is an industrial Micro-ATX motherboard for Intel® Core? Ultra Processors (Series 2), Arrow Lake-S, with Socket LGA1851 and Intel® H810 chipset. The board supports two DDR5 6400 MT/s CU-DIMM memory modules in dual-channel mode, up to 128GB. Two Intel® I226-V 2.5GbE ports provide network connectivity. For display connectivity, the board offers two HDMI® 2.1 TMDS ports, one DisplayPort 1.4a port, and one dual-channel LVDS connector with co-layout eDP, supporting three displays. Further interfaces include four USB 3.2 ports, eight USB 2.0 ports, and up to ten COM ports. Two SATA III ports, M.2 M-Key and M.2 E-Key slots, plus PCIe Gen 5 x16, PCIe Gen 4 x4, and PCIe Ge [more]

Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

The JETWAY UTX-ARS1-H810 is an industrial Micro-ATX motherboard for Intel® Core? Ultra Processors (Series 2), Arrow Lake-S, with Socket LGA1851 and Intel® H810 chipset. The board supports two DDR5 6400 MT/s CU-DIMM memory modules in dual-channel mode, up to 128GB. Two Intel® I226-V 2.5GbE ports provide network connectivity. For display connectivity, the board offers two HDMI® 2.1 TMDS ports, one DisplayPort 1.4a port, and one dual-channel LVDS connector with co-layout eDP, supporting three displays. Further interfaces include four USB 3.2 ports, eight USB 2.0 ports, and up to ten COM ports. Two SATA III ports, M.2 M-Key and M.2 E-Key slots, plus PCIe Gen 5 x16, PCIe Gen 4 x4, and PCIe Gen 4 x1 are available for storage and expansion.

  • Intel® Core? Ultra Processors (Series 2), Arrow Lake-S, Socket LGA1851, max. 125W TDP
  • Intel® H810 chipset
  • 2 x DDR5 6400 MT/s dual-channel CU-DIMM up to 128GB
  • 2 x Intel® I226-V 2.5GbE
  • 2 x HDMI® 2.1 TMDS, 1 x DP 1.4a, 1 x dual-channel LVDS with co-layout eDP
  • Support 3 displays
  • 2 x USB 3.2 Gen 2x1, 2 x USB 3.2 Gen 1x1, 8 x USB 2.0
  • 1 x DB-9 RS-232/422/485, 5 x internal RS-232, optional 4 x internal RS-232
  • 2 x SATA III, 1 x M.2 M-Key, 1 x M.2 E-Key
  • 1 x PCIe Gen 5 x16, 1 x PCIe Gen 4 x4, 1 x PCIe Gen 4 x1


FORM FACTORMicro-ATX, 244.0 (W) x 244.0 (D) mm (9.6" x 9.6")
CPUIntel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 125W)
CHIPSETIntel® H810
MEMORY2 x DDR5 6400MT/s, Dual Channel CU-DIMM, up to 128GB
BIOSUEFI
SECURITYIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP)
DP1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIORealtek Audio Codec
1 x Audio Jack for Line-in
1 x Audio Jack for Line-out
1 x Audio Jack for MIC-in
3W Amplifier
ETHERNET2 x RJ45 for Intel® I226-V 2.5 GbE
USB2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
2 x USB 3.2 Gen 1x1 (5Gbps, Formerly USB 3.1 Gen 1)
2 x USB 2.0
Internal Header for 6 x USB 2.0
COM1 x DB-9 for RS-232/422/485
Internal Header for 5 x RS-232
Internal Header for 4 x RS-232 (Optional)
INTERNAL I/O8-Bit GPIO
SMBUS
I2C
1 x CPU Fan Header
2 x System Fan Header
HDD Active LED
Power LED
Power On/Off
Reset
1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE2 x SATA III
EXPANSION1 x M-Key 2242/2280 (SATA III)
1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) support CNVio
1 x PCIe Gen 5 x16
1 x PCIe Gen 4 x4
1 x PCIe Gen 4 x1
POWER INPUTATX Power Supply
Internal 24+8-pin ATX Header
AT / ATX (Default) Mode
ENVIRONMENTShock: 15G, 11ms duration
Vibration: 1 Grms / 5~500Hz / Operation
Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
Operating Humidity: 10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
EU RoHS
China RoHS
WEEE
REACH
TSCA Declaration
PRO65 Declaration
CMRT Report
OS SUPPORTWindows® 11 (64bit)
Linux
PACKAGE1 x UTX-ARS1 Mother Board
3 x COM Cable
2 x SATA Cable, 50cm
1 x I/O Shield
2 x Jumper
