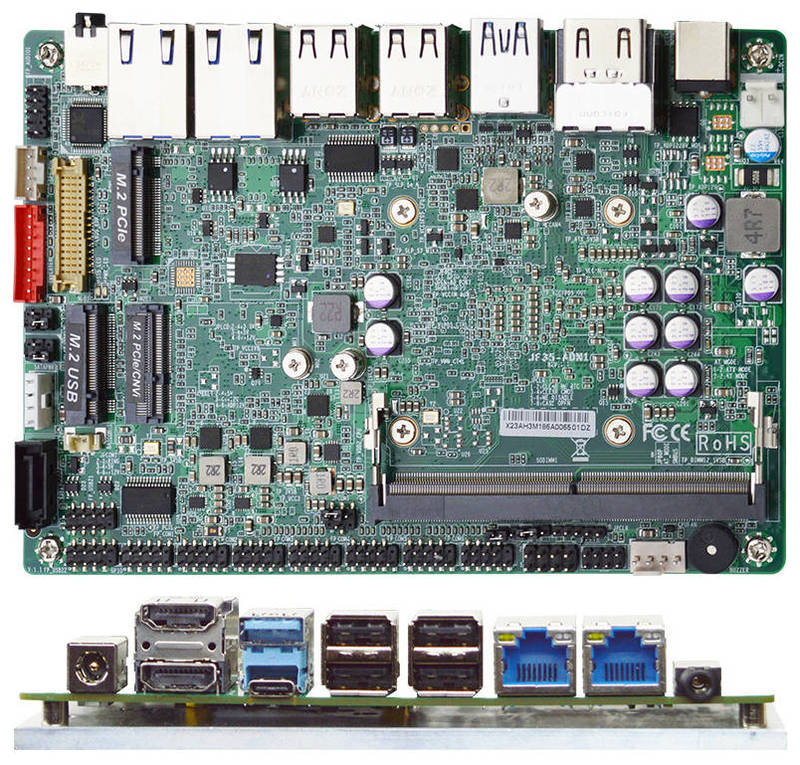

JETWAY JF35-ADN1-N15000-A1 3.5" SBC (Intel Atom N150, 2x 2.5GbE, 3x 4K) [12-28V Power Input]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY JF35-ADN1-N15000-A1 3.5" SBC (Intel Atom N150, 2x 2.5GbE, 3x 4K) <b>[12-28V Power Input]</b>
  • Intel Atom N150 (Twin Lake) !
  • Triple 4K Display !
  • 2x 2.5GbE LAN !
  • 12-28V DC Input !

  • Powered by Intel® Atom® N150 Processor (Formerly Twin Lake, TDP 6W)
  • High-Performance Memory: 1 x DDR5 4800MT/s SO-DIMM, up to 32GB
  • Triple Display Support: 2 x 4K HDMI®, 1 x 4K USB Type-C DP, and 1 x LVDS/eDP output
  • Dual 2.5GbE LAN for high-speed networking
  • Storage & Expansion: 1 x M.2 M-key (NVMe), 1 x SATA III, 1 x M.2 E-key, and 1 x M.2 B-key
  • Comprehensive I/O: 1 x USB 3.2 Gen 2, 1 x USB Type-C with DP Alt Mode, 8 x USB 2.0, 6 x COM
  • Advanced Power Protection: Supports RVP, OCP, and OVP
  • Wide Power Input: DC-in 12~28V for greater power flexibility


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

MB FORM FACTOR3.5"
CPUOnboard Intel® Atom® N150 Processor (Formerly Twin Lake, TDP 6W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (fTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~28V
POWER ON MODEAT / ATX
CONNECTORInternal 2-pin Header
DC Jack
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP)
Type-C DP1 x Type-C DP1.4a (Max Resolution: 3840 x 2160@60Hz)
HDMI®2 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Combo Audio Jack for Line-Out / Mic-In
AMPLIFIER3W
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USB1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode
1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
4 x USB 2.0
Internal Header for 4 x USB 2.0
SERIAL PORT
COMInternal Header for 1 x RS-232/422/485
Internal Header for 5 x RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x CPU Smart Fan
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis Intrusion
1 x Audio Header
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
EXPANSION
M.21 x M-Key 2280 (PCIe 3.0 x2) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
ESG DECLARATIONREACH, EU RoHS, WEEE
Data sheet Download (PDF)
Data sheet Print view
