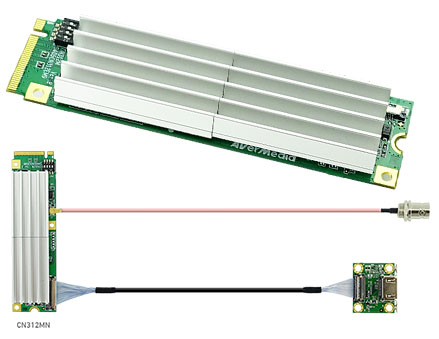

AVerMedia CN312MN M.2 CaptureCard (2K SDI/HDMI Dual-Channel)

AVerMedia CN312MN M.2 CaptureCard (2K SDI/HDMI Dual-Channel)
  • Dual-Channel !
  • 2K SDI/HDMI !
  • M.2 !

AVerMedia AVerGrabber CN312M, the Dual-Channel M.2 Video Capture Card, is equipped by one HDMI and one SDI channels with the embedded audio. With its HDMI and SDI video source input, it is able to support an astounding uncompressed real-time video capture resolution of up to 2048 x 1080 60fps (SDI)/ 1920 x 1200 60fps (HDMI).
At the frame rate of 60 fps, CN312M can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

  • Max. input resolution 2048 x 1080 60fps
  • Max. capturing/recording 1920 x 1080 60fps
  • [more]

    Share

549.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks

Add to cart

AVerMedia AVerGrabber CN312M, the Dual-Channel M.2 Video Capture Card, is equipped by one HDMI and one SDI channels with the embedded audio. With its HDMI and SDI video source input, it is able to support an astounding uncompressed real-time video capture resolution of up to 2048 x 1080 60fps (SDI)/ 1920 x 1200 60fps (HDMI).
At the frame rate of 60 fps, CN312M can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.

  • Max. input resolution 2048 x 1080 60fps
  • Max. capturing/recording 1920 x 1080 60fps
  • Wide temperature and conformal coating design
  • CN312MN: Normal version
  • CN312MW: Wide temperature version
  • CN312MC: Wide temperature with conformal coating version
  • The latest M.2 compact Gen2x4 interface
  • Hardware video processing:
    1. hardware scaling
    2. color space conversion




Host Interface Gen2 x 4
Audio Format HDMI/SDI embedded audio
Audio Sampling Rate 32/44.1/48KHz
Connector Type 1CH HDMI Type A , 1CH BNC for SDI
Input Interface HDMI 1.4a, DVI-D 1.0 + 2K SDI
Video Format Driver support output: 4:2:0 8-bit : NV12, I420, YV12 4:2:2 8-bit : YUY2, YUYV, UYVY 4:4:4 8-bit: IYU2, BGR24, BGR32 SDK support output: 4:2:0 8-bit : YV12 4:2:2 8-bit : YUY2 4:4:4 8-bit: BGR24
Color Depth 8-bit (support 10-bit video input)
Channel No. 2 channels
Max. Input Resolution 2048 x 1080@60fps (SDI) 1920 x 1200@60fps (HDMI)
Max. Recording Resolution 1920 x 1080@60fps
Encoding Mode Software encoding
Multi-Card Support Yes
Supported OS Windows 7/ 8.1/ 10 (32/ 64 bit) Linux (based on V4L2, support x86, x64)
Form Factor M.2 (2280 Key M)
Dimension (W x L x H) CN312MN: 22 x 80 x 6.8 mm CN312MW/CM312MC: 22 x 80 x 26.3 mm
Power Consumption 3.3 W
Operating Temperature CN312MN: 0°C ~ 40°C CN312MW/CM312MC: -20°C ~ 70°C (with 0.5m/s airflow)
Storage Temperature 0% ~ 95%  relative humidity
Operating Humidity -40°C ~ 85°C
Safety Certification FCC / CE
Package includes CN312M x 1 BNC Cable x 1 HDMI Micro Coaxial Cable x 1
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
