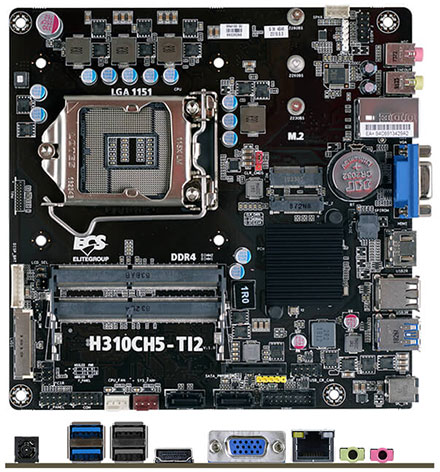

ECS H310CH5-TI2 Thin-ITX (Intel H310 LGA1151)

PRODUCT IS CURRENTLY NOT AVAILABLE !

1x HDMI, 1x VGA !

Integrated LVDS for an extra display option
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Intel® 14nm 8th generation Multi-Core CPU support
Supports DirectX® 12 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU

RAM :

CPU	Supports 8th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
CHIPSET	Intel® H310 Express Chipset
GRAPHICS	Supports DirectX® 12
MEMORY	Dual-channel DDR4 Memory architecture Supports DDR4 2666 non-ECC, Un-buffered SO DIMM Memory 2 X DDR4 SO-DIMM socket Support up to 32 GB* Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	1 X M.2 slot for SSD For 2280/2260 (SATA/PCIe Gen2) SSD 1 X M.2 slot for WiFi/BT PCIe Gen 2
STORAGE	Support by H310 Express Chipset 2 X Serial ATAIII 6Gb/s
AUDIO	6-Channel HD audio CODEC Realtek ALC662 Realtek ALC662 6-channel High Definition audio CODEC Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution Emulation of 26 sound environments to enhance gaming experience Voice Cancellation and Key Shifting in Karaoke mode Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	Realtek 8111H Gigabit Fast Ethernet Controller Wake-On-LAN
USB	Support by H310 Express Chipset 4 X USB3.1 Gen1 port(s) up to 5Gb/s Back Panel 2 port(s) Onboard 2 port(s) 2 X USB2.0 port(s) Up to 480 Mb/s Back Panel 2 port(s)
REAR PANEL I/O	2 X Audio jacks 1 X RJ-45 port 1 X HDMI port(s) 1 X D-Sub (VGA) port(s) 2 X USB3.1 Gen1 port(s) 2 X USB2.0 port(s) 1 X DC-in Connetor
CONNECTORS & HEADERS	1 X 4-pin CPU_FAN connector 1 X 4-pin SYS_FAN connector 1 X Front panel audio header 1 X Speaker header 1 X USB 3.1 Gen1 headerSupport additional 2 USB ports 2 X SATA III 6Gb/s connector(s) 1 X CLR_CMOS header 1 X CIR header 1 X Serial port header (COM) 1 X Card reader header 1 X Chassis intrusion header 1 X Touch board header 1 X Camera header 1 X LVDS connector 1 X SATA power connector 1 X TPM header (SPI Type)
SYSTEM BIOS	AMI BIOS with 128 MB SPI Flash ROM ACPI & DMI F7 hot key for boot up devices option Dual Display Support ECS EZ BIOS Support GUI UEFI BIOS Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot Multi-Language BIOS Audio, LAN, can be disabled in BIOS Supports PgUp clear CMOS Hotkey
FORM FACTOR	Thin Mini ITX Form Factor 170x170
OS SUPPORT	Windows 10 64-bit * Intel 8th Generation CPUs support Windows 10 64bit only
CERTIFICATIONS	CE/FCC Certification ErP/EuP Certification WHCK Certification
BUNDLED SOFTWARE	ECS Intelligent EZ Utility : eBLU, eDLU

Data sheet	Download (PDF)
Data sheet	Print view
ECS Elitegroup Catalog	Download (PDF)
