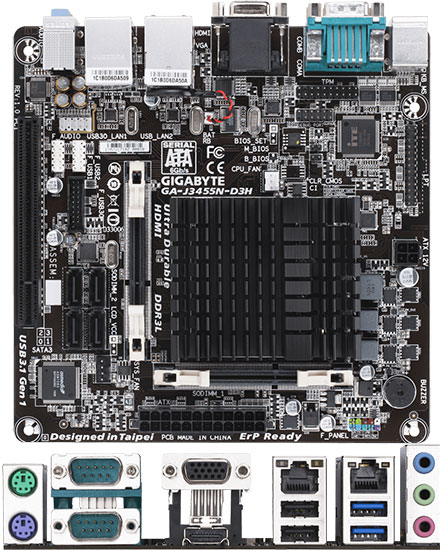

Gigabyte GA-J3455N-D3H (Intel Celeron J3455 Apollo Lake 4x2.3Ghz, 4x SATA, 2x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Gigabyte GA-J3455N-D3H (Intel Celeron J3455 Apollo Lake 4x2.3Ghz, 4x SATA, 2x LAN)

  • Built-in Intel® Celeron™ J3455 (up to 2.3 GHz) quad-core processor
  • GIGABYTE Ultra Durable™ Technology
  • Dual channel DDR3L SO-DIMM slot support
  • All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
  • Dual GbE LAN with high ESD Protection
  • Extra two SATA 6Gb/s interfaces for more system storage connectivity
  • High Quality Audio Capacitors
  • PCI interface for wide-range expansion card selections


Share

CPU Intel Celeron J3455 4x2.3Ghz
Graphics Intel GMA
Formfactor ITX (17x17cm)
RAM 2x DDR-IIIL
Audio Realtek ALC887 7.1
Base Intel ITX
USB 6x USB 2.0, 4x USB3.1
Firewire --
IDE/SATA 4x SATA 6Gb/s
LAN 2x 10/100/1000
Parallel 1x
Serial 2x
yes TV-Out
yes PCI
no Mini-PCI
no IDE
no DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
CPU
    Built in with an Intel® Quad-Core Celeron® J3455 SoC (2.3 GHz)
    * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
Memory
    2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3L 1866/1600/1333 MHz memory modules Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the SoC:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
Audio
    Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
    2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
    1 x PCI slot
Storage Interface Integrated in the SoC:
    2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1)
ASMedia® ASM1061 chip:
    2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)
USB Integrated in the SoC:
    4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
SOC + GENESYS LOGIC USB 2.0 Hub:
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
    1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x TPM header
Back Panel Connectors
    1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x serial ports 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
    iTE® I/O Controller Chip
H/W Monitoring
    Voltage detection Temperature detection Fan speed detection Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
    1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
    Support for Xpress Install Support for @BIOS Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundle Software
    Norton® Internet Security (OEM version)
Operating System
    Support for Windows 10 64-bit
Form Factor
    Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    Data sheet Download (PDF)
    Data sheet Print view
    Please login for creating product ratings.
    Your rating:

    Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

    Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

    In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

    We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

    RAM compatibility
    --> When using an 8GB RAM, be sure to use Slot2 instead of Slot1 --> preferably use crucial 1,35V RAM
    OS Support
    Intel Apollo Lake chipset only supports Windows 10 - 64-bit
