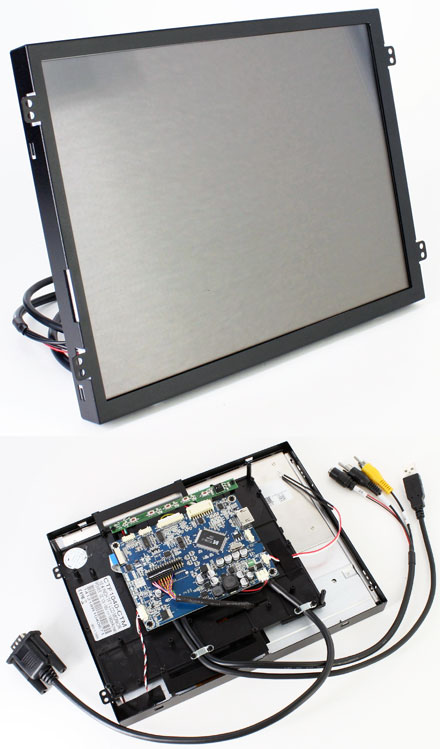

CTF1040-CTM - VGA/HDMI 10.4" TFT - Capacitive Multi-Touchscreen USB - Video - OPEN-FRAME [1024x768, Kontrast 1200:1]

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF1040<b>-CTM</b> - VGA/HDMI 10.4" TFT - Capacitive Multi-Touchscreen USB - Video - <b>OPEN-FRAME</b> [1024x768, Kontrast 1200:1]
3D 360° View
  • Open-Frame !
  • Auto Power On !
  • 1024x768 !
  • HDMI + VGA !

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units): [more]

Share

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units):
- Speakers
- Auto-Dimmer
- Different cable lengths
- Other display models/sizes
- Touchscreen RS232 instead of USB
- Other connector types
- [...] Ask us !


Additional informations :
With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

AC-Adapter for home usage and a car cigarette lighter adapter is included.

The CTF-1040-CTM can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 7/8
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifications
Screen size 10.4" digital
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 3072x768= 2,359,296 dots
Physical Resolution 1024x768
Viewing angle 176° H/V (Super MVA Technology)
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 9-32V
Power consumption max. 12W
Video system 2x Video inputs (PAL/NTSC)
1x VGA input
1x HDMI input
Dimensions Dimensions : 231 x 178.9 x 39.9 mm
Display : 210.4 x 157.8 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (englisch)
Auto Power On/Off
What is included ? - 10.4" VGA/HDMI Open-Frame Multi-Touchscreen TFT with Video-support
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet Print view
Dimensions Download (PDF)
