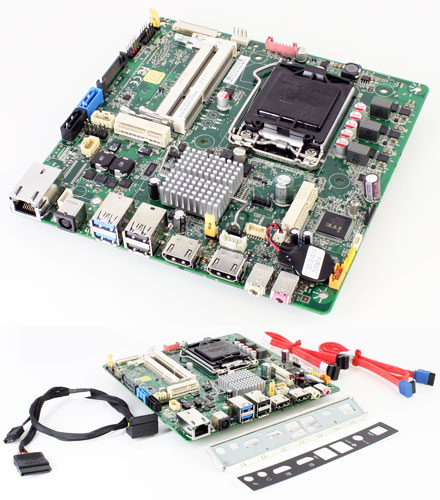

Mitac PH11LI Thin-ITX (Intel H81, LGA1150)

  • Support Intel 4th generation Intel Core Processor
  • LGA1150 Socket H3 CPU compatible (up to 65W)
  • Dual channel DDR3 with two connectors (up to 16GB)
  • Features high speed Gigabit Ethernet connection
  • Two PCI Express Mini Card connector for expansion
  • Features 2 SATA3 (6Gbps)
  • Hi-Speed external USB3.0 ports support
  • HDMI-in & HDMI-out display connectivity
  • Embedded LVDS/ connectivity


Share

99.95 EUR
incl. 19% VAT, plus shipping
Availability on request

To cart
Compare
CPU LGA1150
Graphics Intel HD Graphics
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio RealTek ALC662 5.1
Base Intel ITX
USB 8x USB 2.0, 2x USB 3.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100/1000
Parallel --
Serial --
yes TV-Out
no PCI
yes Mini-PCI
no IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])
Processor Intel Haswell H3 LGA1150 CPU Socket Support up to Dual/Quad core 65W
Chipset PH10LI: Intel Lynx Point H87 Chipset
PH11LI: Intel Lynx Point H81 Chipset
Memory
Support for DDR3 1066/1333/1600 MHz SO-DIMMs Support for up to 16 GB of system memory
204-pin DDR3 SO-DIMM 2
Display
HDMI-in & HDMI-out connector 40P Embedded LVDS connector
Audio RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio. Included are: Back panel audio connectors: Line-out & Mic Onboard S/PDIF digital audio header
Expansion Capability
PCI Express Full-/Half-Mini Card slot 1
PCI Express Half-Mini Card slot 1
Peripheral Interfaces
USB 2.0 front panel ports 6 (Headers)
USB 2.0 back panel connectors (black) 2
USB 3.0 high-current/fast-charging ports (Blue) 4(PH10LI)
2(PH11LI)
SATA 3.0 Gb/s 2
Legacy I/O
Legacy I/O Controller (ITE IT8519)
LAN Support REALTEK RTL8111G Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
BIOS Support for Advanced Configuration and Power Interface (ACPI) setting
Instantly Available PC Technology
Suspend to RAM support Wake on PCI Express, LAN, front panel, serial, and USB ports
Hardware Monitor Subsystem Hardware monitoring through the Nuvoton ITE IT8519 legacy I/O controller, including: Remote thermal sensor 4-pin system fan header with speed control
Power Requirement 19V DC connectivity via back-panel DC jack(5.0mm/ ID, 7.5mm/ OD)
Environment Operating Temperature: 0 °C to +50 °C Storage Temperature: -20°C to +70°C
Safety CE FCC UL
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
Header pins Download
