- Assemblation of system (Hardware + Software) -

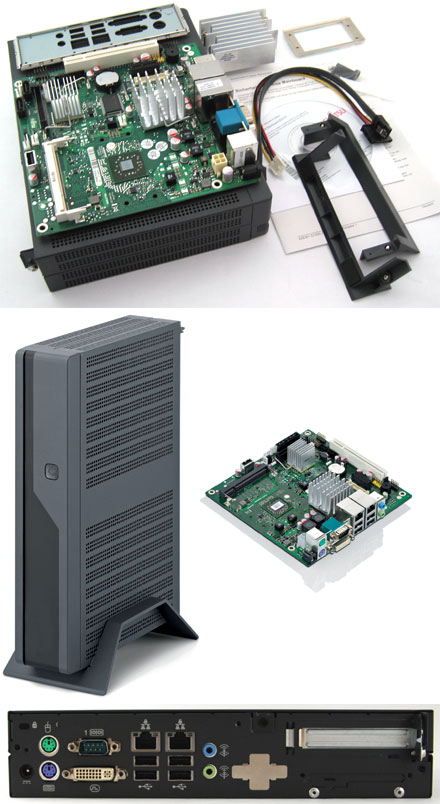

Fujitsu D2963-S1 Barebone (AMD Mobile Sempron 200U, 1Ghz, ATI Radeon) [FANLESS]
PRODUCT IS CURRENTLY NOT AVAILABLE !
- ATI Radeon X1250 graphics on board; VGA, DVI and Dual Channel LVDS
- support HD Audio on board
- Dual GbE LAN on board
- Serial ATA II RAID on board
- CF support (for Embedded OS) on board
- Mini PCI Express support (eg. for WLAN) on board
- USB 2.0 on board
- Board Support Package (BSP) for Windows XP Embedded
- BSP f. Windows CE 6.0 (planned)
- Evaluation BSP for Embedded Linux (emlix)
This barebone was designed for industrial environments. The system can be used for 24/7 operation. The barebone is long term available (5 years).
For a full PC you need in addition :
- 2.5" HDD/SSD or Compac
[more]
- ATI Radeon X1250 graphics on board; VGA, DVI and Dual Channel LVDS
- support HD Audio on board
- Dual GbE LAN on board
- Serial ATA II RAID on board
- CF support (for Embedded OS) on board
- Mini PCI Express support (eg. for WLAN) on board
- USB 2.0 on board
- Board Support Package (BSP) for Windows XP Embedded
- BSP f. Windows CE 6.0 (planned)
- Evaluation BSP for Embedded Linux (emlix)
This barebone was designed for industrial environments. The system can be used for 24/7 operation. The barebone is long term available (5 years).
For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash
- SO-DDR2-RAM
- 19VDC or 24VDC power source
The enclosure can be operated fully fanless with the D2963-S1 even under full load in continous operation. But an enclosure fan is included in scope of supply which can get connected to the mainboard in case the enclosure is installed in an area with limited air flow or when using a PCI card with appropriate specifications.
Dimensions of enclosure : 250 x 52 x 191 mm
